Name: Neodymium magnet, round, 5mm diameter, 2mm height, N52
SKU: 00029
Availability: OutOfStock

Neodymium magnet, round, 5mm diameter, 2mm height, N52

0,25 € incl. VAT

Available again: 12.2025

Out of stock

Description

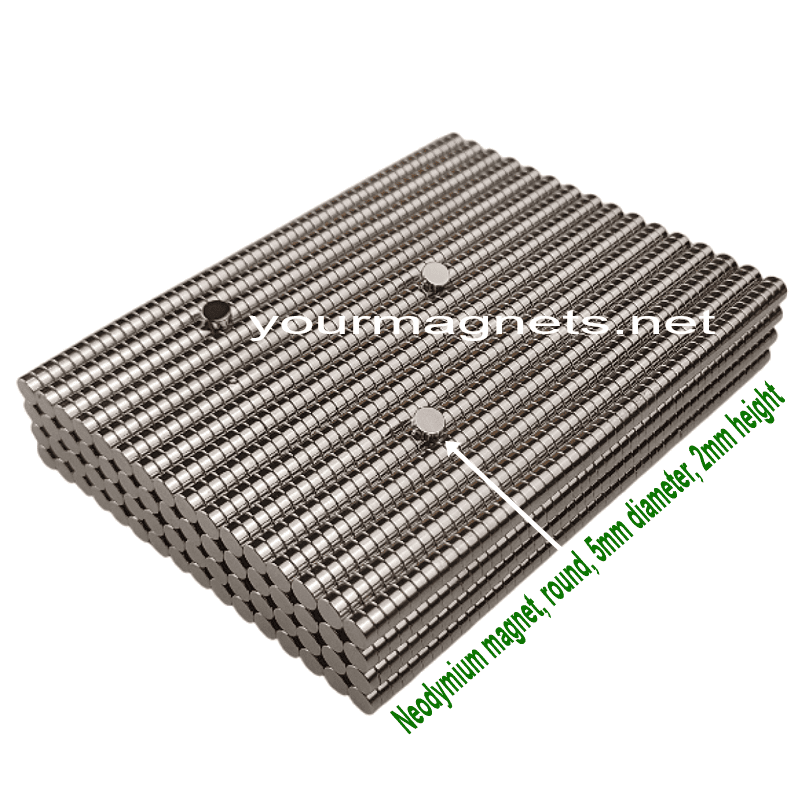

This neodymium disc magnet has a diameter of 5 mm and a height of 2 mm, delivering an impressive pull force of approx. 0.77 kg for its size. With a magnetic grade of N52, it belongs to the strongest commercially available neodymium magnets. The axial magnetization means that the magnetic poles are located on the two flat faces.
Its Nickel-Copper-Nickel (NiCuNi) coating provides a shiny metallic surface while protecting against corrosion and abrasion. Weighing only 0.28 g, this compact magnet is ideal for precision applications in electronics, model building, crafts, and technical prototypes. Maximum operating temperature: 80 °C.

Technical Data:

Property	Value
Shape	Disc magnet
Diameter	5 mm
Height	2 mm
Magnetization	Axial
Grade	N52
Pull Force	approx. 0.77 kg
Coating	Nickel-Copper-Nickel (NiCuNi)
Weight	approx. 0.28 g
Max. Operating Temp.	80 °C
Applications	Electronics, model making, crafts, DIY

Additional information

Product type	Permanent magnet
Material	Neodymium iron boron (NdFeB)
Manufacturing method	Sintered
Max. operating temperature	80 °C
Magnetisation Direction	Axial
Coating	Nickel (NiCuNi)
Grade	N52
Diameter	5 mm
Height	2 mm
Tolerance	±0.1mm
Color	Silver
TARIC code	85051110
