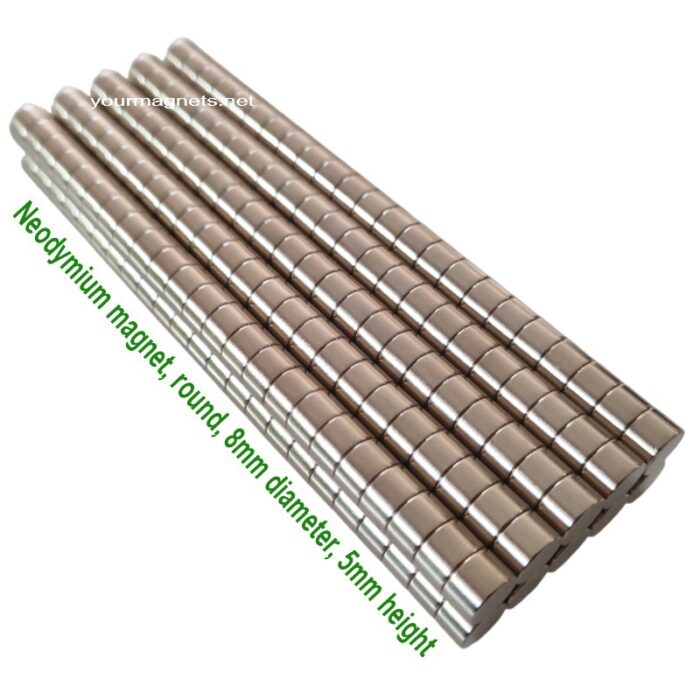

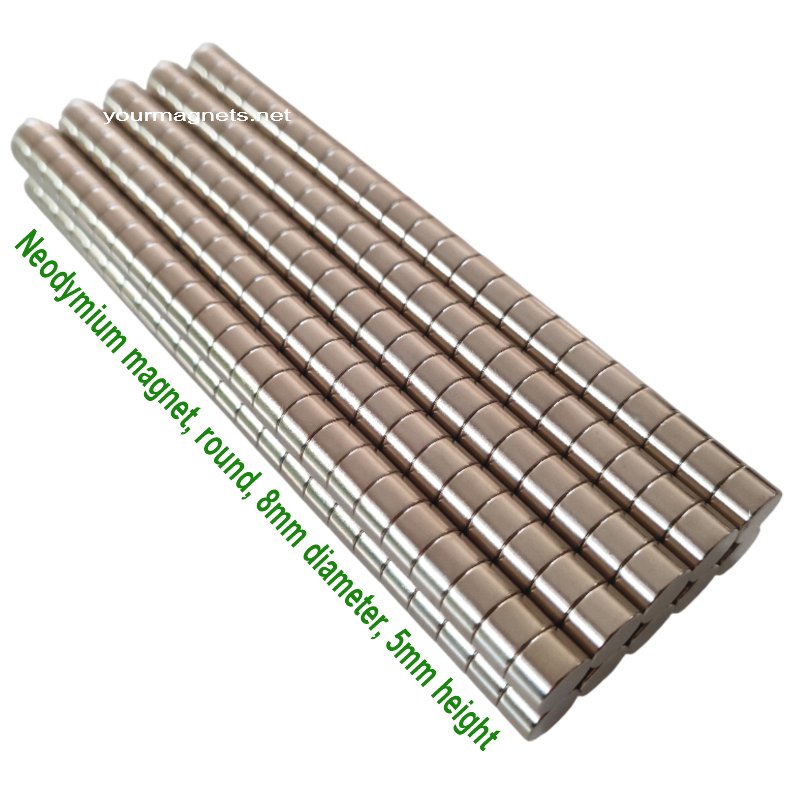

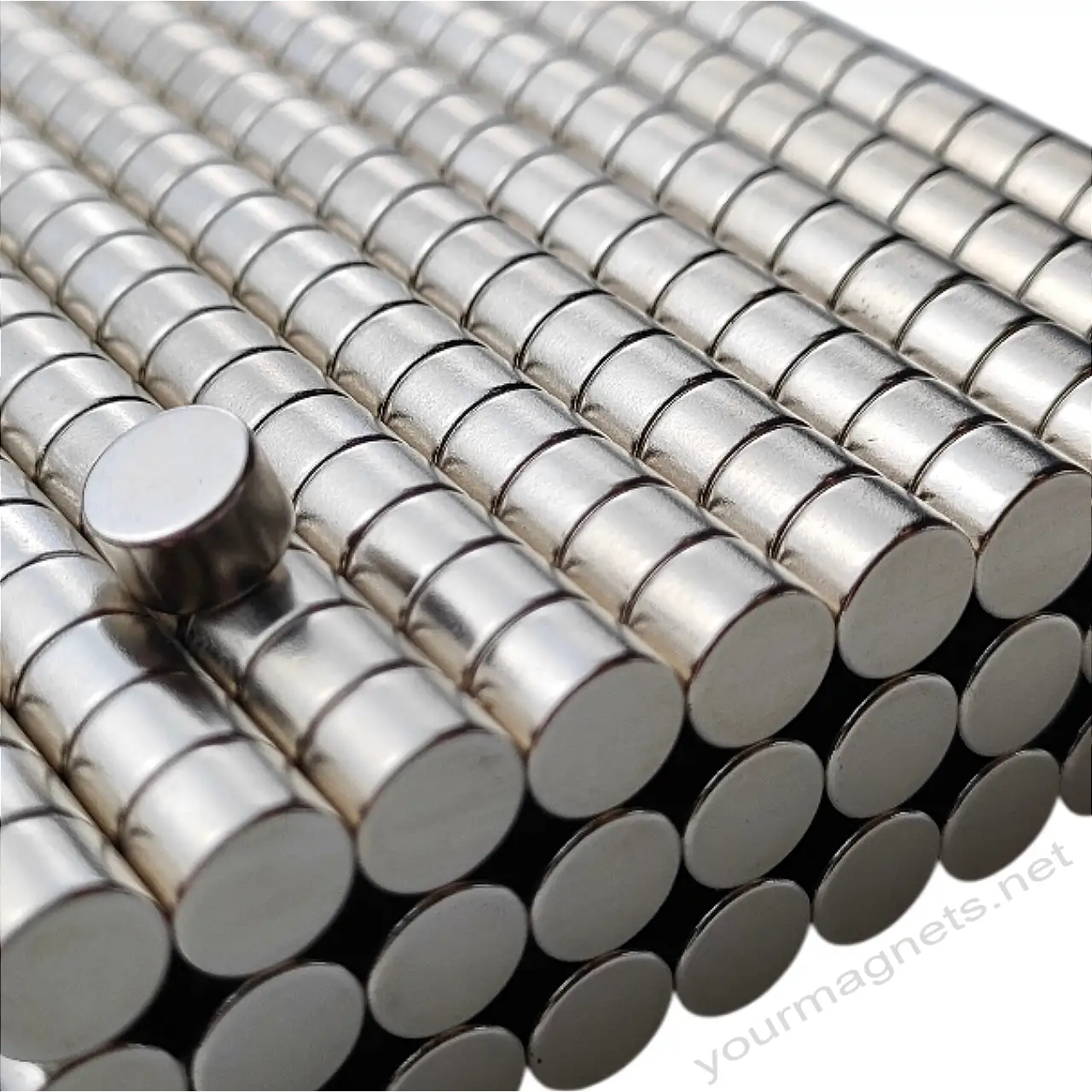

Neodymium magnet, round, 8mm diameter, 5mm height, N52

Name: Neodymium magnet, round, 8mm diameter, 5mm height, N52
SKU: 00169
Availability: InStock

0,55 € incl. VAT

plus shipping

Delivery time: 2-10 business days

Tiered Pricing

Quantity	Unit price
1 - 9	0,55 €
10 - 19	0,45 €
20 - 49	0,42 €
50 - 99	0,40 €
100 - 199	0,37 €
200 - 499	0,33 €
500+	0,31 €

Add to wishlist

SKU: 00169 Category: Discs and Rods Tag: 2-4kg

Description

This high-grade neodymium disc magnet measures just 8mm in diameter and 5mm in height, yet it provides a surprising 2.3 kg of holding power. The N52 magnetization ensures exceptional strength, while the NiCuNi triple-layer coating offers both corrosion resistance and a clean, polished look. Ideal for technical builds, magnetic closures, and custom designs where compact size and high force are essential.

Magnet Specifications:

Property	Details
Shape	Disc
Dimensions	Ø 8 mm × 5 mm
Magnetization	Axial
Magnetic Grade	N52
Coating	Nickel-Copper-Nickel (NiCuNi)
Pull Force (approx.)	2.3 kg
Weight	~1.7 g
Pole Orientation	Top/bottom (flat surfaces)
Application Examples	Engineering, DIY projects, sensors, closures

Additional information

Product type	Permanent magnet
Material	Neodymium iron boron (NdFeB)
Magnetisation Direction	Axial
Manufacturing method	Sintered
Max. operating temperature	80 °C
Coating	Nickel (NiCuNi)
Grade	N52
Diameter	8 mm
Height	5 mm
Tolerance	±0.1mm
Color	Silver
TARIC code	85051110
