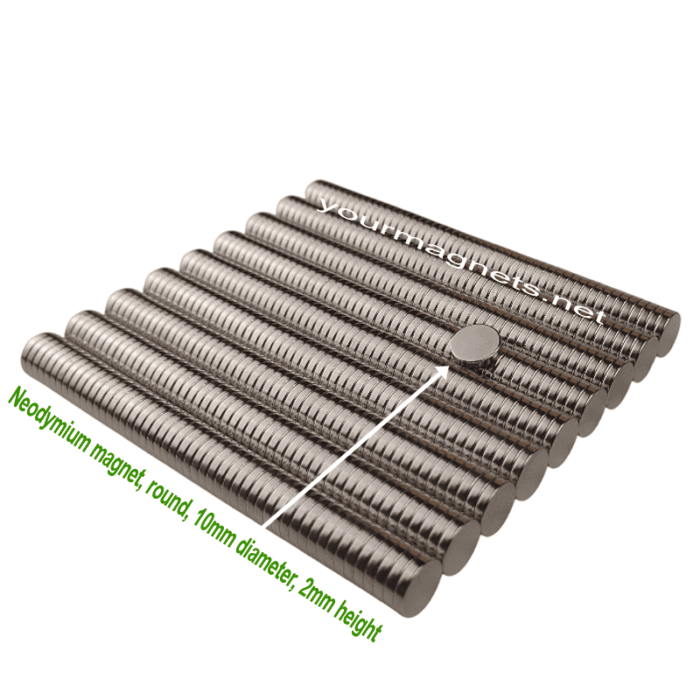

Name: Neodymium magnet, round, 10mm diameter, 2mm height, N35
SKU: 00069
Availability: OutOfStock

Neodymium magnet, round, 10mm diameter, 2mm height, N35

0,34 € incl. VAT

Available again: 12.2025

Out of stock

Description

This neodymium disc magnet measures 10 mm in diameter and 2 mm in height, offering a pull force of approx. 1 kg. With a magnetic grade of N35, it combines strong performance with excellent value. The axial magnetization means the magnetic poles are located on the two flat circular surfaces.
Protected by a Nickel-Copper-Nickel (NiCuNi) coating, the magnet has a smooth metallic finish and is resistant to corrosion and wear. Weighing only 1.2 g, it is suitable for a wide range of uses, including model making, mechanical engineering, crafts, and technical assemblies. Maximum operating temperature: 80 °C.

Technical Data:

Property	Value
Shape	Disc magnet
Diameter	10 mm
Height	2 mm
Magnetization	Axial
Grade	N35
Pull Force	approx. 1 kg
Coating	Nickel-Copper-Nickel (NiCuNi)
Weight	approx. 1.2 g
Max. Operating Temp.	80 °C
Applications	Model making, crafts, mechanical parts, DIY

Additional information

Product type	Permanent magnet
Material	Neodymium iron boron (NdFeB)
Manufacturing method	Sintered
Magnetisation Direction	Axial
Max. operating temperature	80 °C
Grade	N35
Coating	Nickel (NiCuNi)
Diameter	10 mm
Height	2 mm
Tolerance	±0.1mm
Color	Silver
TARIC code	8505.11.00.00
